Specification:
| Part No. | HT-LNA-00400512-21C | |||
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Input/output parameters | ||||
Freq range | 40 | 512 | MHz | |
Gain | 30 | 32 | dB | |
Gain flatness | ±2 | dB | ||
Noise figure | 2.5 | 2.8 | dB | |
Input VSWR | 1.2:1 | |||
Output VSWR | 1.6:1 | |||
Output P1dB | 21 | dBm | ||
Others | ||||
Operating voltage | 12 | 15 | V | |
Current | 200 | mA | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | 60×44×22 | mm |
RF Connectors | N, Female | -- |
Power supply | Feed thru capacitor | -- |
ENVIRONMENTAL | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -40 | 60 | °C |

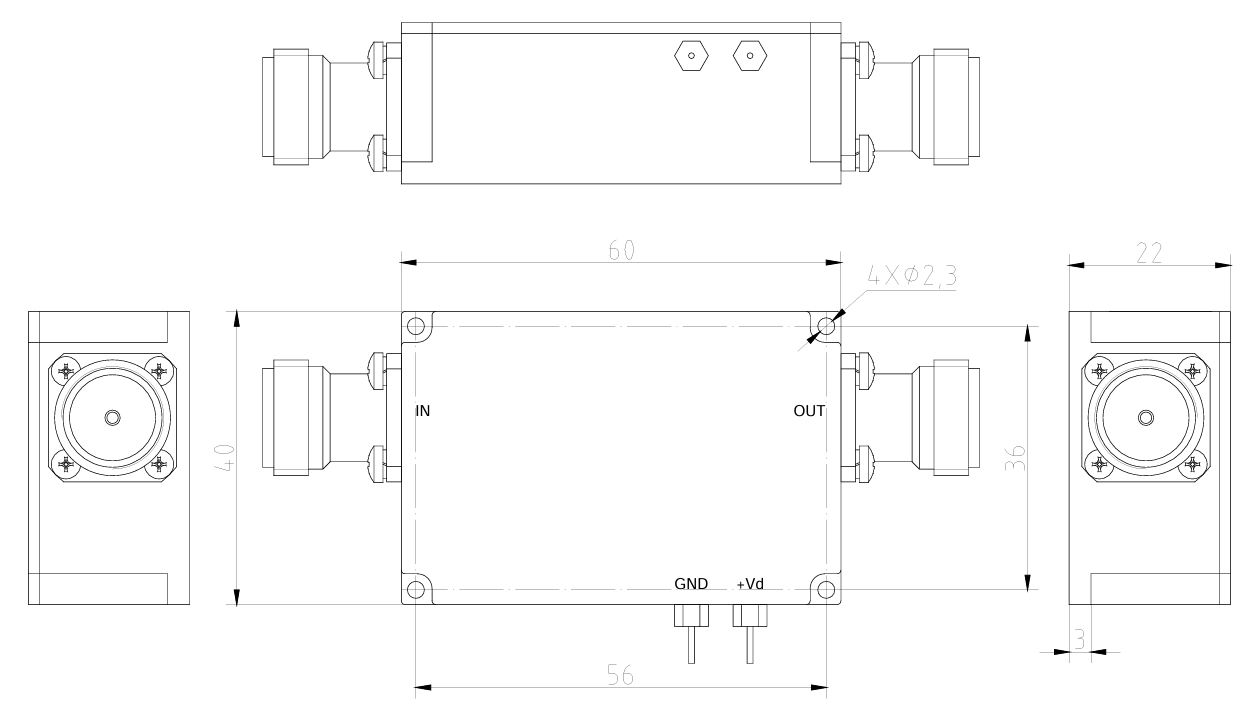

Outline Drawing:
