Electrical
Model No. | HTDB-3KV-DMF |
Frequency(MHz) | 50-4000 |
Insertion Loss(dB) | ≤0.3 |
VSWR | ≤1.2 |
Impedance (Ω) | 50 |
Power Rating(W) | 300 |
Connector | DIN-Male/Female |
PIM3(dBc) | ≤-155(2*43dBm)@1800MHz |
Blocking DC voltage(V) | 3000(for VSWR= 1,0 at sea level,ambient temperature 20°C) |
Weight(g) | 307 |
Material and Plating
Outer Conductor | Brass / Trimetal（Cu-Sn-Zn）Plating |
Body | POM |
Center Contact | Tin Bronze/ Silver Plating |
Nut | Brass / Trimetal Plating |
Environment& Mechanical Specifications
Durability (matings) | ≥500 cycles |
Operation temperature | -40°C to +85°C |
Application | Indoor or Outdoor,IP65 |
RoHS | Compliant |

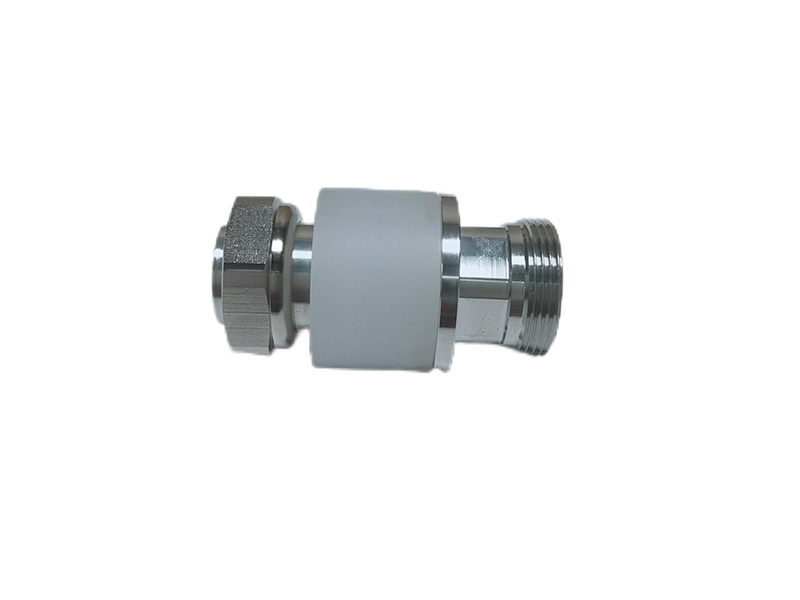

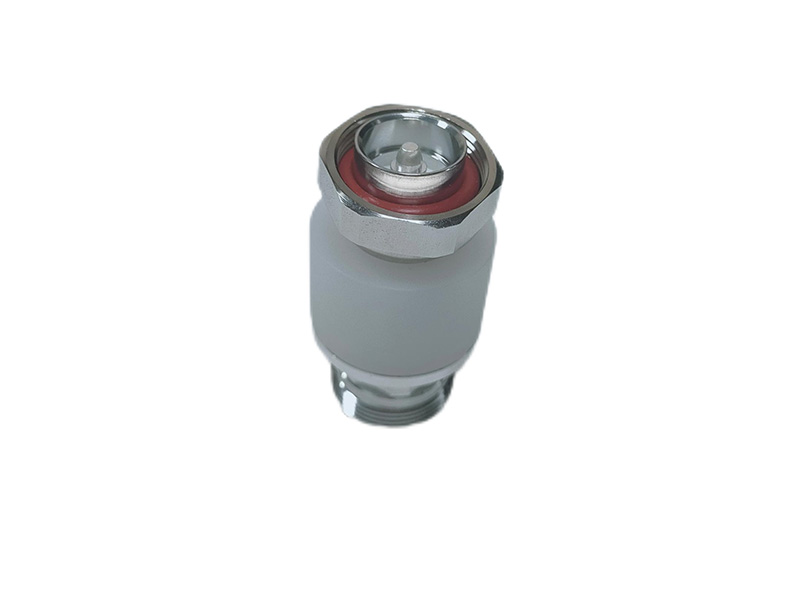

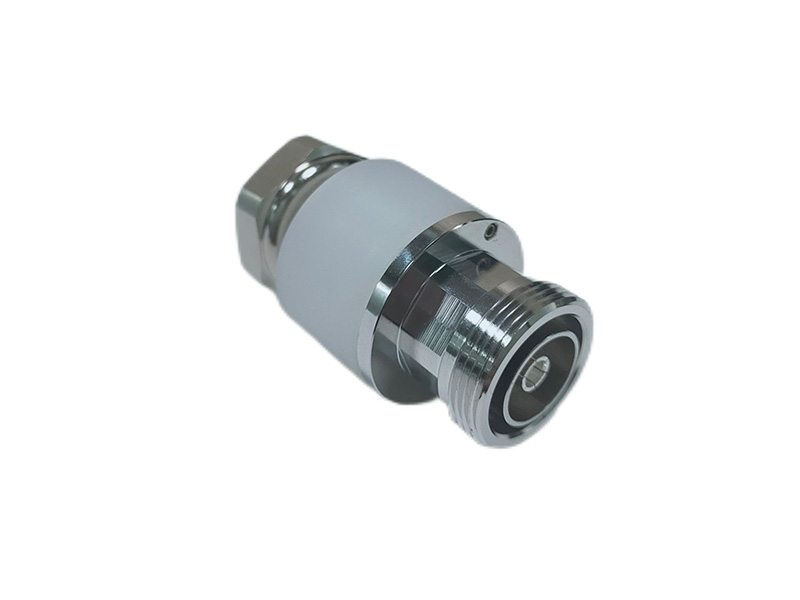

Product Image
