Hybrid coupler

600-6000 MHz Hybrid Combiner 2 IN 1 OUT

A hybrid combiner is a crucial device in RF communication systems that combines multiple input signals into a single output or splits a single input into multiple outputs while maintaining the signal integrity. It effectively manages signal distribution and isolation, ensuring minimal loss and optimal performance in complex RF environments. Applications: Hybrid combiners are widely used in various RF systems, including: Base stations Distributed antenna systems (DAS) Indoor coverage systems Our Advantages: High-Quality Components: We utilize top-grade materials to ensure durability and reliability in all our hybrid combiners. Advanced Technology: Hustin products incorporate the latest technological advancements to provide superior performance and efficiency.

Always on time

Acceptable price

Excellent quality

Product Detail

Message

Specification:

Model No.

HT-HC-0660-NF

Frequency (MHz)

600-6000

Attenuation Value

3.5±0.5dB

Isolation

≥20 dB

Maximum Input Power

200W

Maximum VSWR

≤1.30

Intermodulation

163dBc (with 2×20W)

Connector

N-Female

DC/AISG

Port1&Port3

RoHS Compliant

Yes

Impedance Ohms

50Ω

Dimension

174*142*64 mm

Weight

2.5KG

Application

IP65

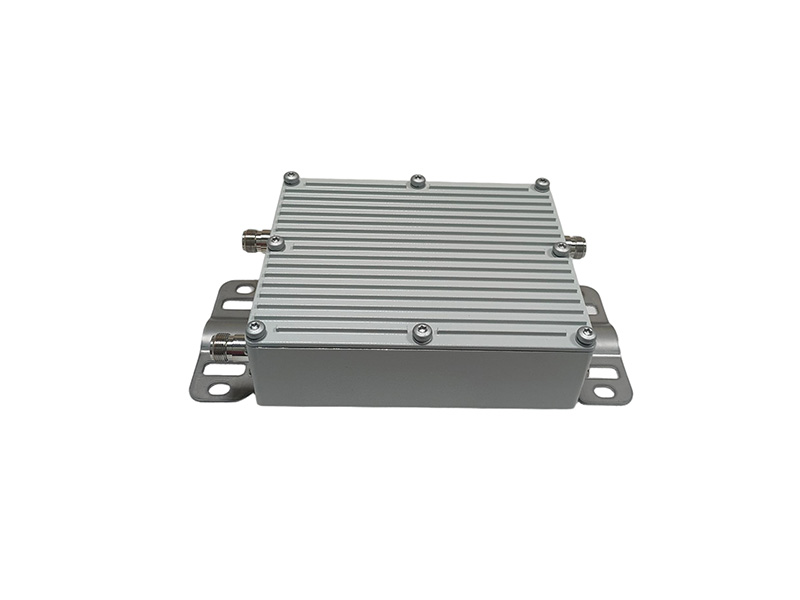

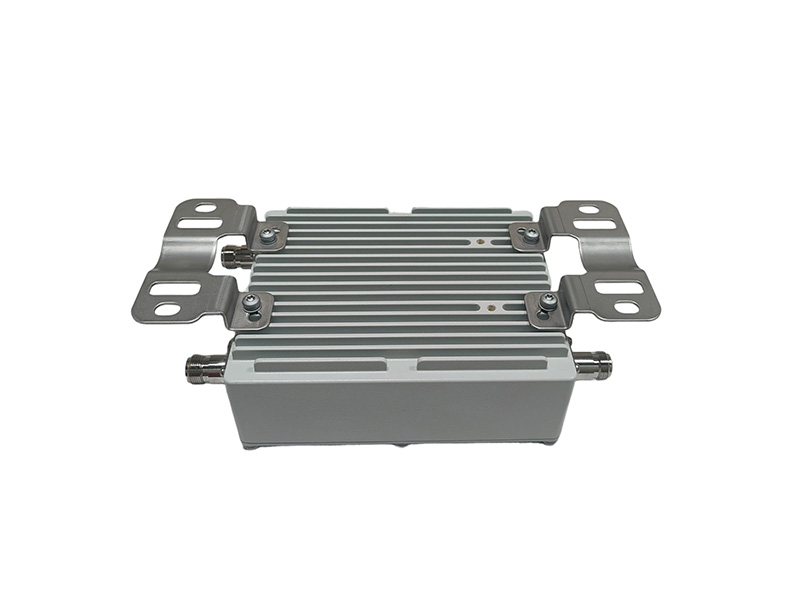

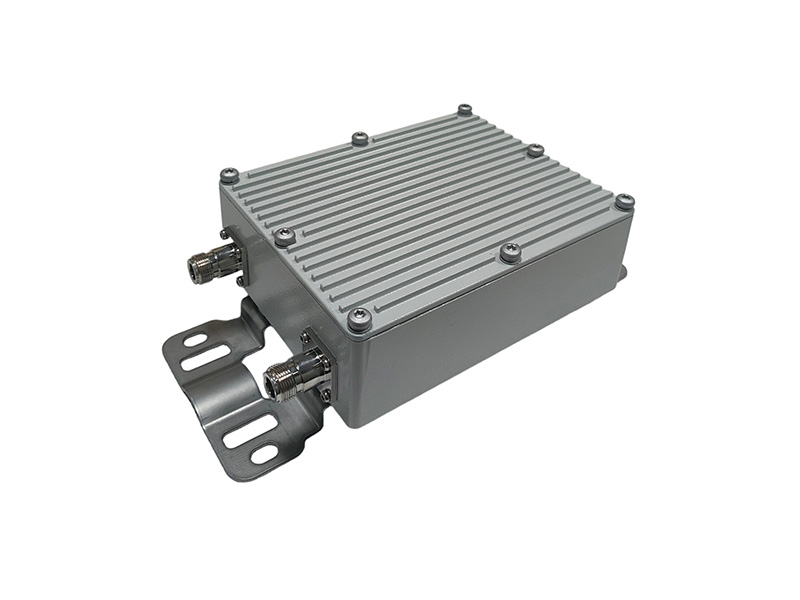

Product picture:
