Combiner

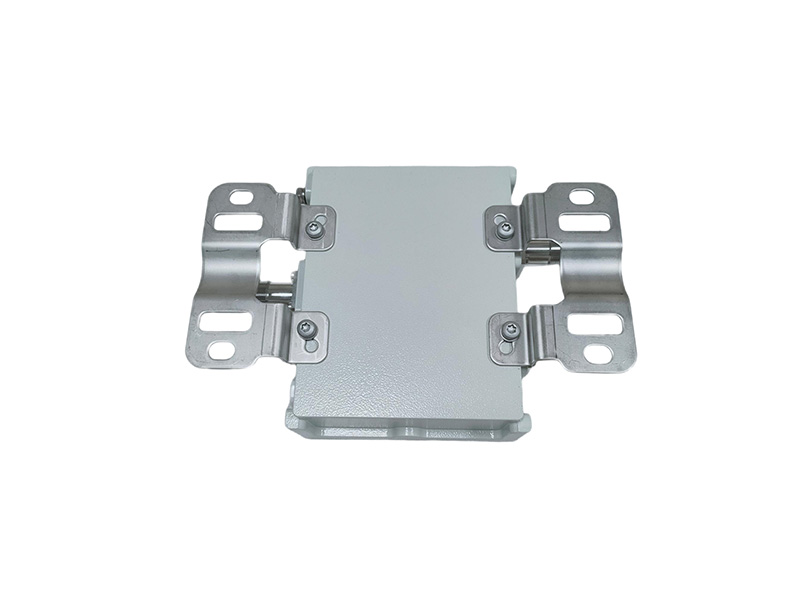

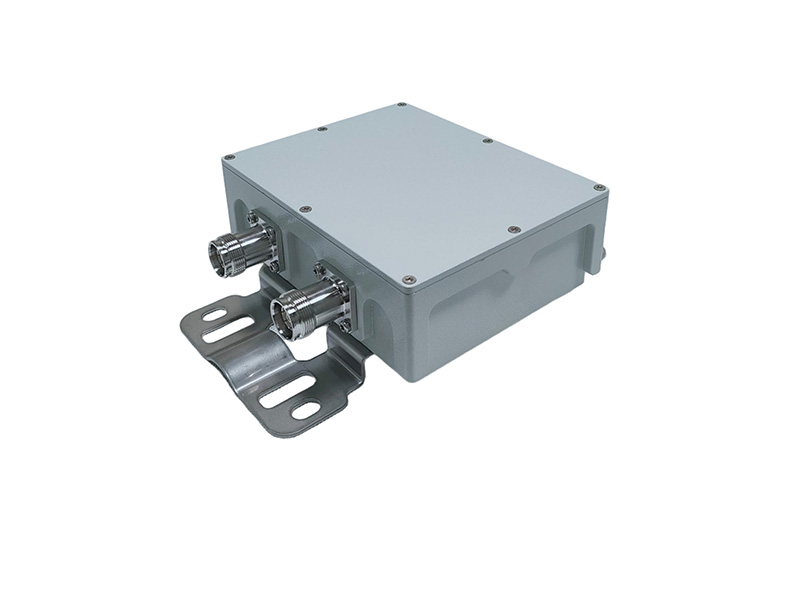

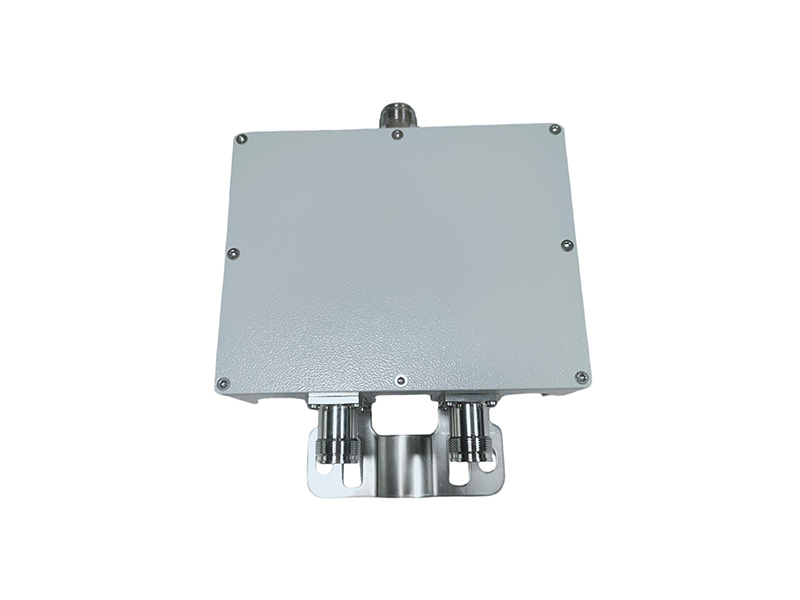

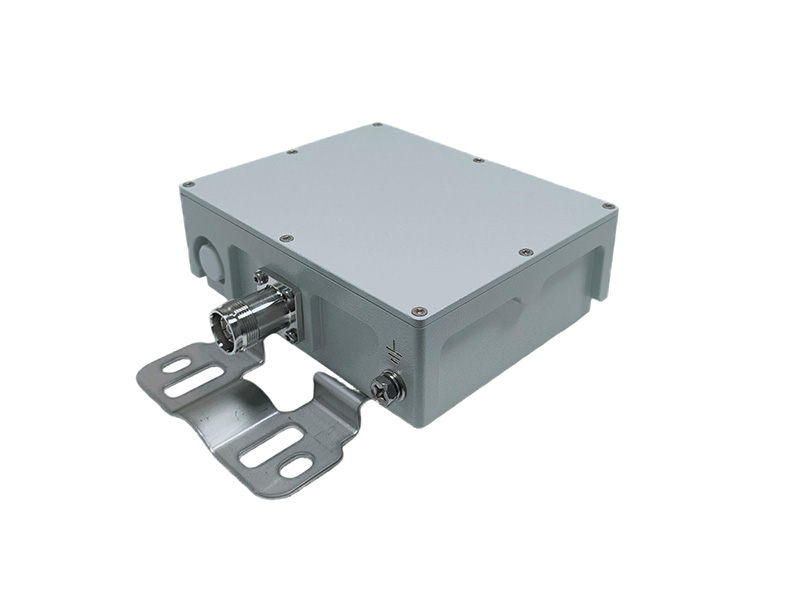

703-803/880-960 MHz Diplexer 4.3-10 Female

Combiners are essential components used in RF (radio frequency) and microwave systems to combine multiple signals into a single output or to split a signal into multiple outputs while maintaining signal integrity. They enable the simultaneous transmission or reception of multiple signals using a single antenna or transmission line, optimizing system performance and spectrum utilization.

Always on time

Acceptable price

Excellent quality

Product Detail

Message

Specifications :


Model No.

HT-DIP-0709-43F(9508025050)

Electrical

Frequency range (MHz)

Port1

Port2


703-803

880-960

Insertion Loss(dB)

≤0.3

Isolation(dB)

≥50

VSWR

≤1.20

Intermodulation (dBc)

-150dBc (with 2×20W)

DC/AISG

By-pass

Lightning protection

IEC 61000-4-5; 8kA, 8/20us

Impedance (Ω)

50 Ω

Power Rating

250W

Environmental

Operation temperature

-20°C to +65°C

Storage Temperature (°C)

-40°C to +65°C

Relative humidity

5% - 95%

Application

Outdoor (IP67)

Mechanical

Connector

4.3-10-Female

Weight

≤1.8kg

Color

Grey(409C)

Dimension(mm)

150 x 120 x 51mm

P/N

9508025050

Outline Drawing :
