Specifications :
Model No. | HT-TRI-1826-43F | ||
Electrical | |||
Frequency range (MHz) | Port1 | Port2 | Port3 |
1710-1880 | 1920-2170 | 2490-2690 | |
Insertion Loss(dB) | ≤0.3 | ||
Isolation(dB) | ≥50 | ||
VSWR | ≤1.20 | ||
Intermodulation (dBc) | -150dBc (3rd order; with 2×20W) | ||
Impedance (Ω) | 50 Ω | ||
Power Rating | 250 W | ||
DC/A/SG | By-pass(max.3000 mA) | ||
Lightning protection | 10KA；10/350us pulse | ||
Environmental | |||
Operation temperature | -30 °C to +65 °C | ||
Storage temperature | -40 °C to +85 °C | ||
Relative humidity | 5% - 95% | ||
Application | Outdoor (IP66) | ||
Mechanical | |||
Connector | 4.3-10 Female | ||
Weight | ≤2.8Kg | ||
Color | Grey 409C | ||
Dimension(mm) | 169 x 146 x 46mm | ||
P/N | 9508031050 | ||

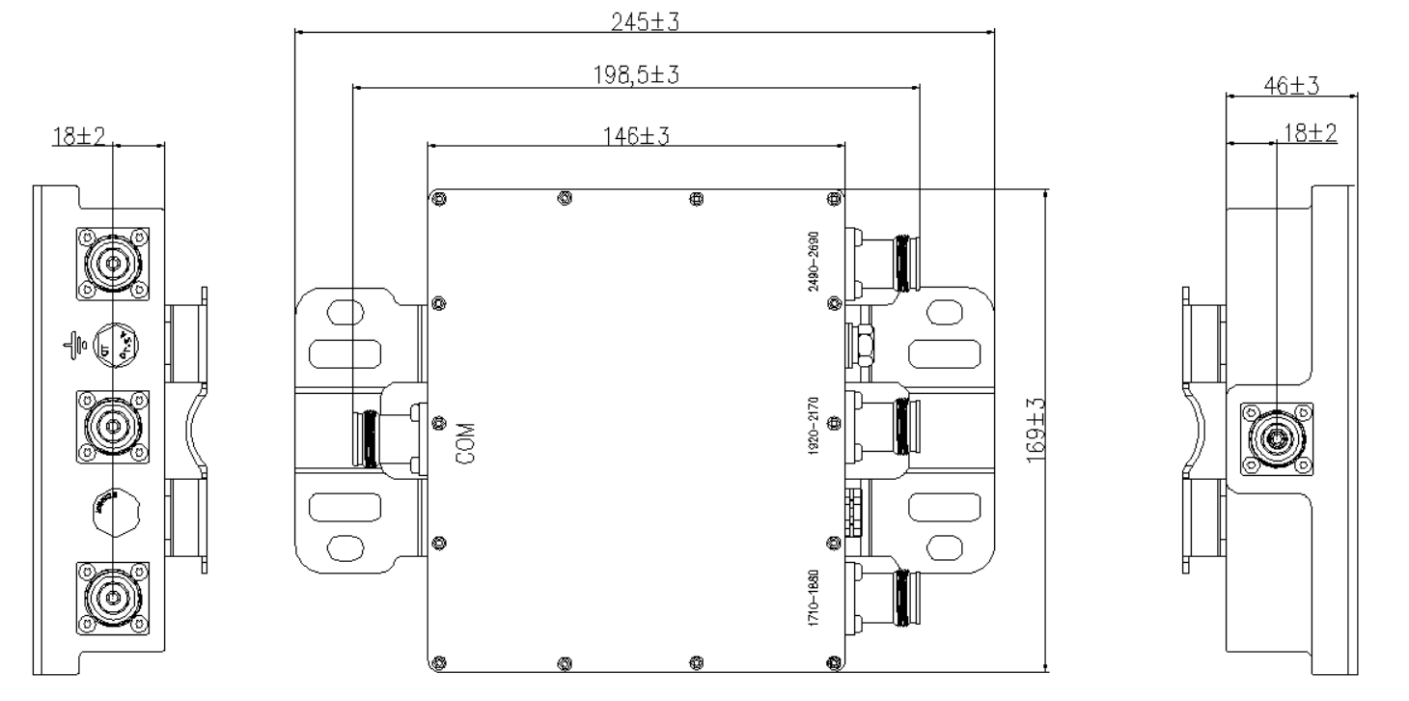

Outline Drawing :
