Specifications :
Model No. | HT-HEXA-091721-SMA-F | |||||
Electrical characteristics | ||||||
Port | Rx | Tx | Rx | Tx | Rx | Tx |
Frequency(MHz) | 906-913 MHz | 951-958 MHz | 1733-1755MHz | 1828-1850MHz | 1940-1965MHz | 2130-2155MHz |
Bandwidth(MHz) | 7MHz | 7MHz | 22MHz | 22MHz | 25MHz | 25MHz |
Insertion loss | ≤1.4dB | ≤1.4dB | ≤1.4dB | ≤1.4dB | ≤1.4dB | ≤1.4dB |
In-Band Ripple | ≤1.0dB | ≤1.0dB | ≤1.0dB | ≤1.0dB | ≤1.0dB | ≤1.0dB |
Intersection suppression(MHz) | ≥40@925MHz | ≥40@1795MHz | ≥40@2045MHz | |||
Isolation（dB） | ≥80 | |||||
VSWR | ≤1.25 | |||||
Input power (W) | 50W/per port (average power) | |||||
Environment characteristics | ||||||
Operation temperature | -20℃～+55℃ | |||||
Relative humidity | 5% - 95% | |||||
Mechanical characteristics | ||||||
Connectors | SMA-F | |||||
Net Weight（kg） | *** | |||||
Dimension, mm | 162*115*70 | |||||

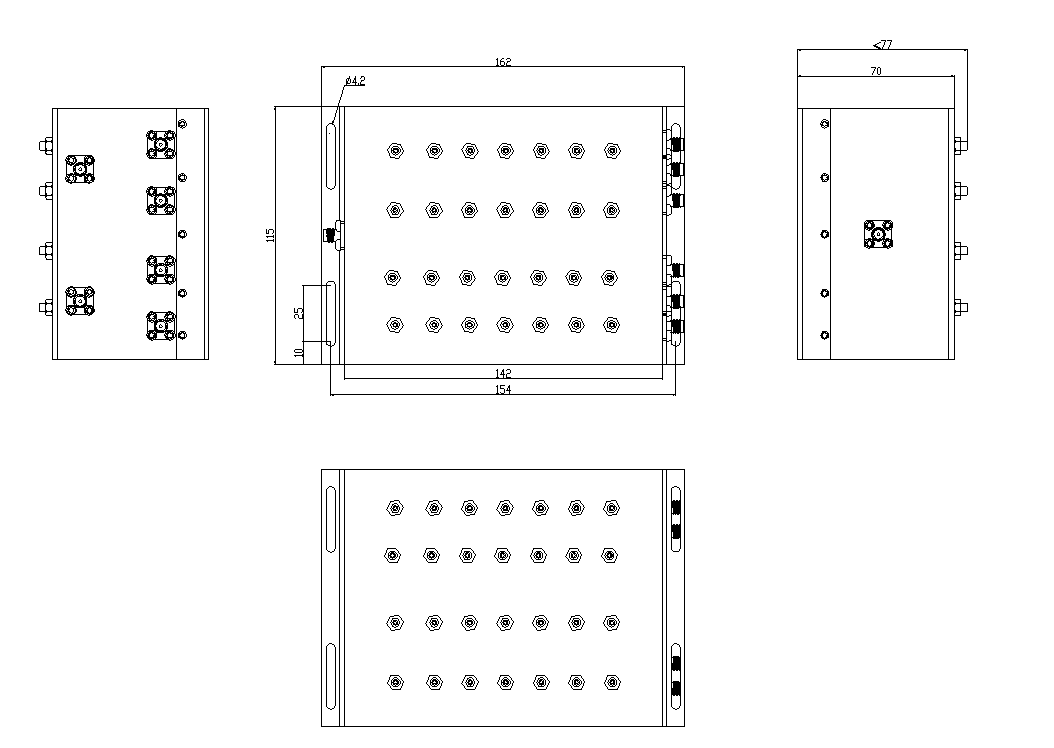

Outline drawing :
