Attenuator

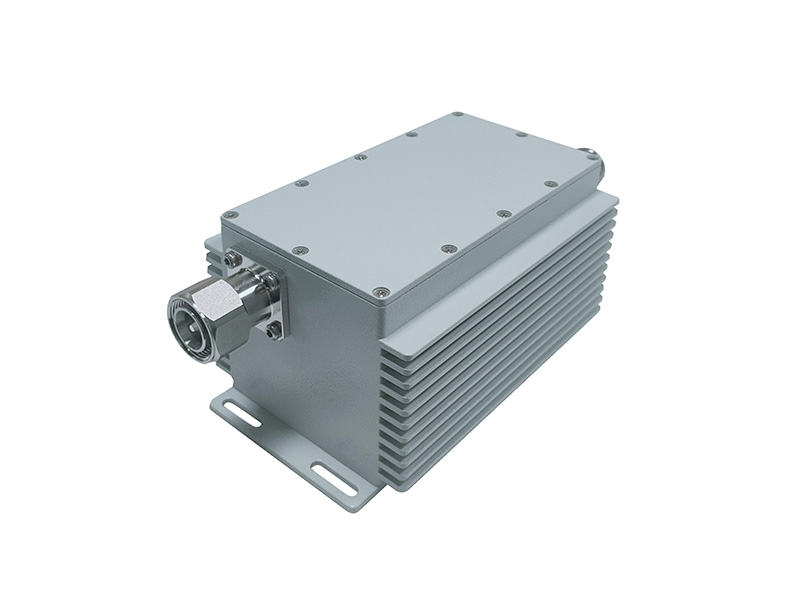

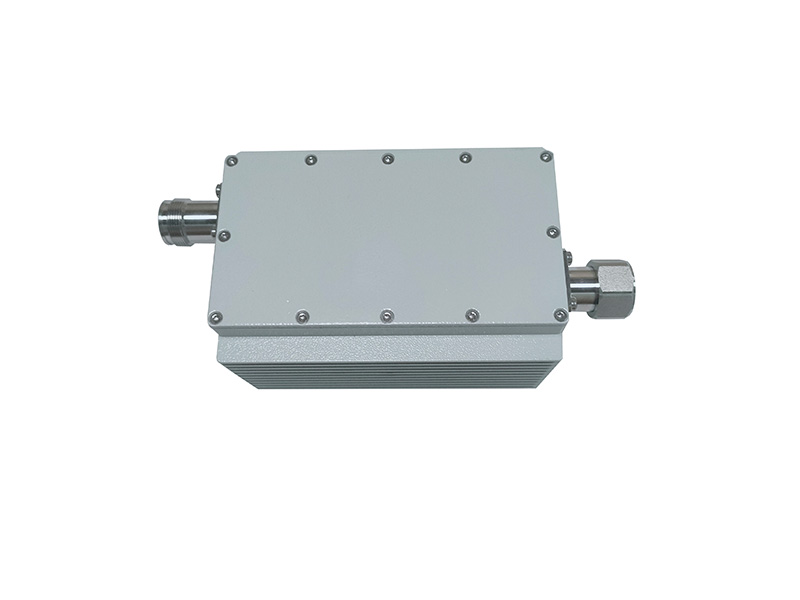

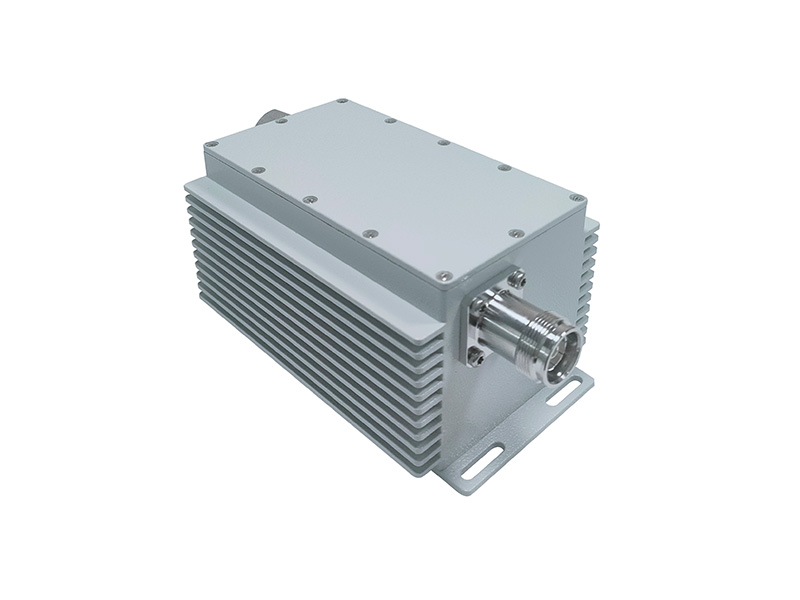

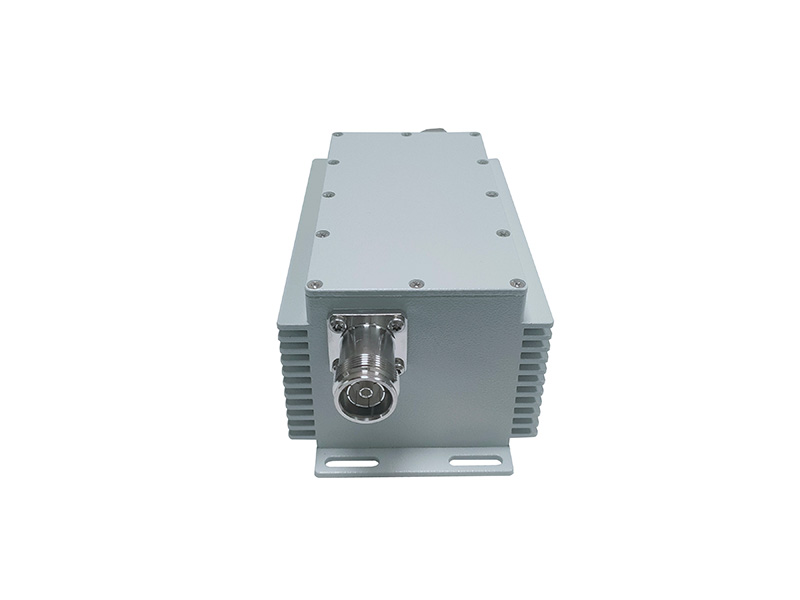

617-5929MHz 100W RF Attenuator 4.3/10-Male to Female

Attenuators are essential components used in electronic circuits to reduce the amplitude of signals without significantly distorting their waveform. At Hutsin, we offer a range of attenuators designed for various applications in telecommunications, RF systems, and signal processing.

Always on time

Acceptable price

Excellent quality

Product Detail

Message

Specifications :

Model No.

HT-0659-100-4MF

Frequency(MHz)

617-5929

Attenuation(dB)

3dB

5dB

8dB

10dB

13dB

15dB

20dB

30dB

Attenuation Accuracy(dB)

±1.2

±1.5

±1.8

±2±2.5

Design

Coaxial Cable, Low PIM Attenuator

Connectors of Both Ends

4.3-10 Male to 4.3-10 Female

Maximum Input Power, Watts

100W

Maximum VSWR

1.3

Intermodulation

160dBc (3rd order; with 2×20W)

RoHS Compliant

Yes

Impedance Ohms

50



Dimensions

128x90x73.5mm

Weight

2.5kg approx.

Application

IP66

Outline drawing:
