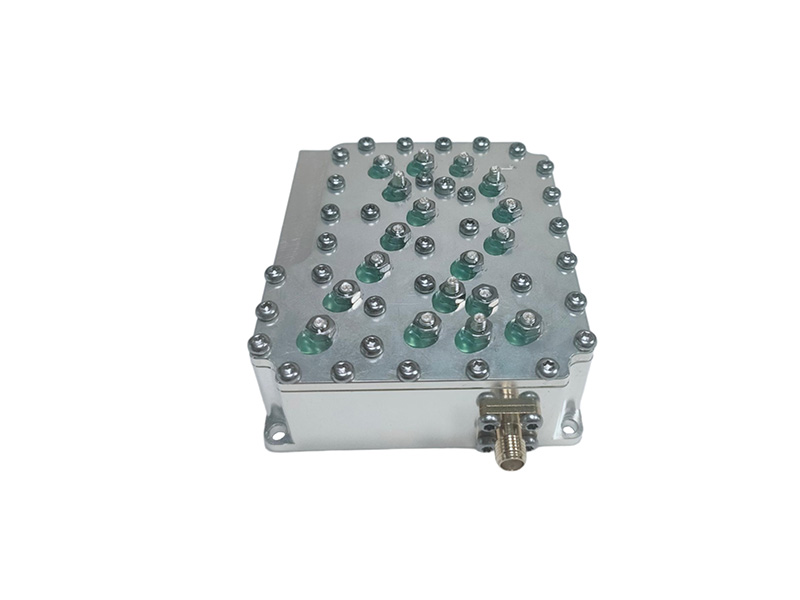

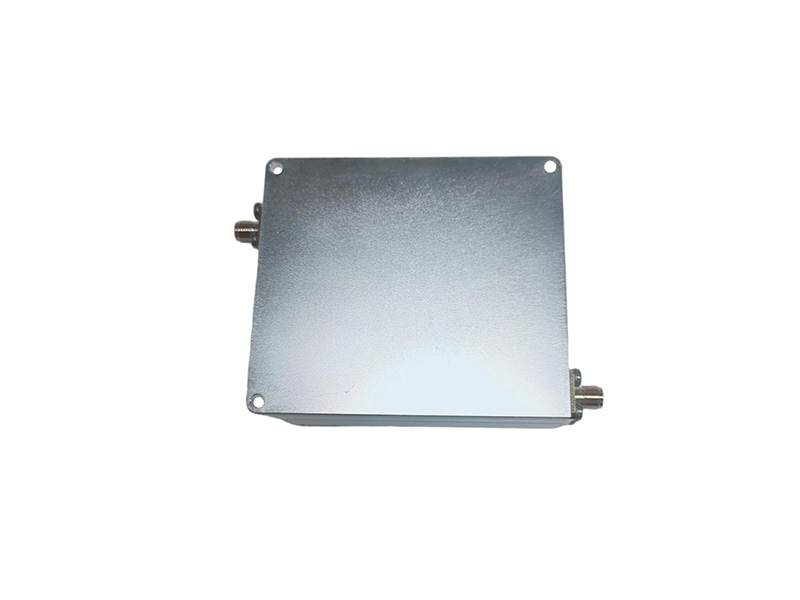

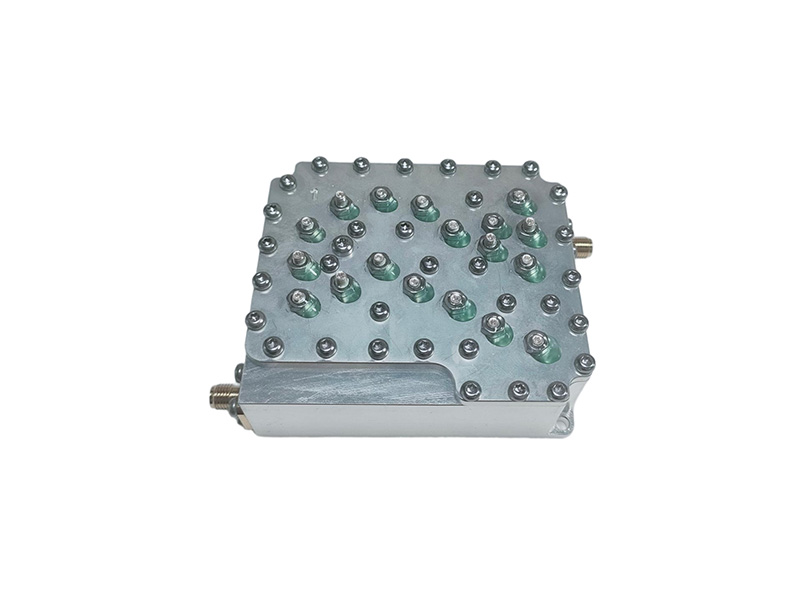

Specifications :
Part No. | HT-BPF-1415-SMA/F | |
Frequency range (MHz) | 1430 ~ 1500 | |
Insertion Loss(dB) | ≤1.0dB | |
Ripple | ≤1.0dB | |
Rejection | ≥30dB@DC-1268MHz ≥80dB@608-676MHz, ≥80dB@850-930MHz ≥90dB@1176.45MHz（GPS L5） ≥90dB@1202.025MHz（GLONASS G3） ≥90dB@1207.14MHz（BD B2） ≥90dB@1227.60MHz（GPS L2） ≥90dB@1246MHz（GLONASS G2） ≥90dB@1268.52MHz（BD B3） ≥90dB@1278.45MHz（Galileo E6） | ≥80dB@1330MHz~1380MHz ≥90dB@1561.098MHz（BD L1） ≥90dB@1575.42MHz（GPS L1） ≥90dB@1602MHz（GLONASS G1） ≥80dB@2400MHz~2500MHz ≥60dB@2700MHz~4000MHz ≥80dB@4200MHz~4400MHz ≥60dB@5100MHz~5800MHz ≥50dB@5800MHz~12750MHz |
VSWR | ≤1.5 | |
Connector Type | SMA-F | |
Size(mm) | 80*70*25MM（including connector） | |
Weight（kg） | 0.6 | |
Operation temperature | -20℃～+60℃ | |
Color | silver plating | |
Outline drawing
