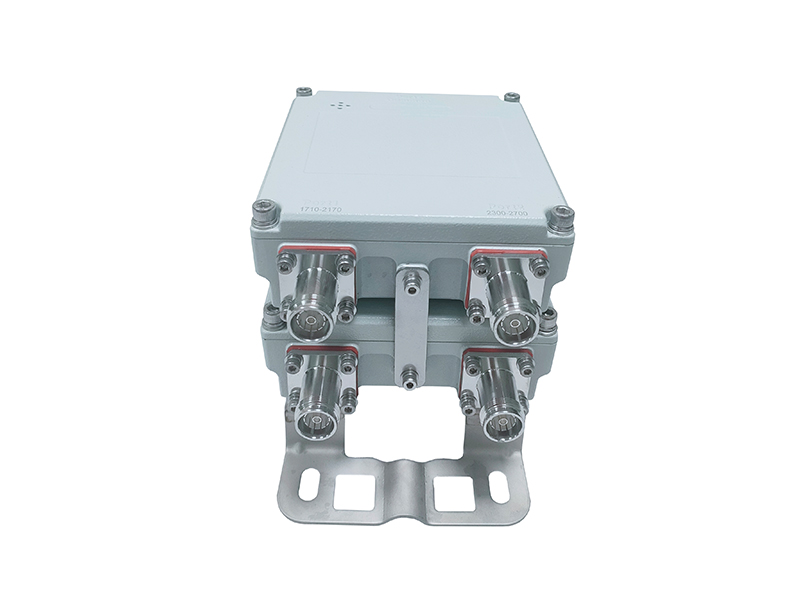

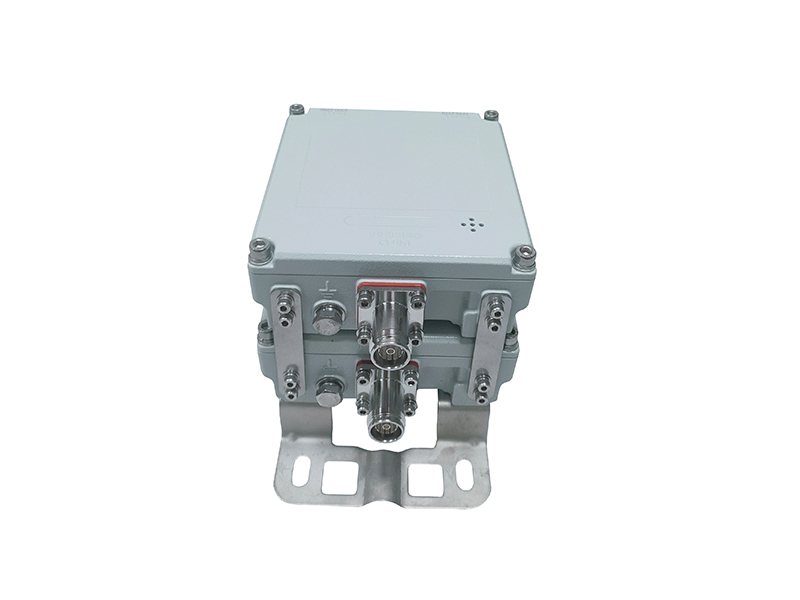

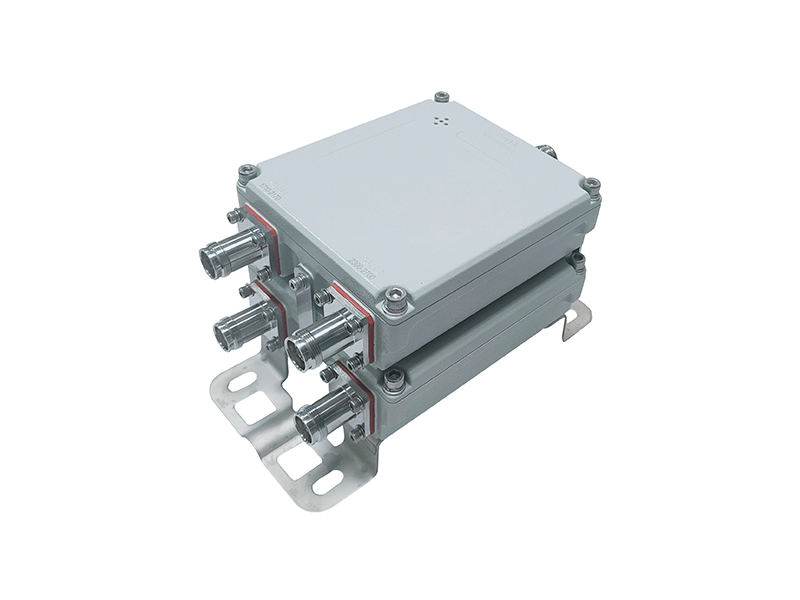

1710-2170/2300-2700MHz 4.3-10 Female Diplexer (DOUBLE STACK)
Low Passive Inter-modulation -155dBc
Low VSWR & Insertion Loss
High Isolation, Indoor & Outdoor, IP67
Widely used for In-building Solutions
Specifications :
Model No. | HT-DIP-1826-43F(D) | |
Electrical | ||
Frequency range (MHz) | Port1 | Port2 |
1710-2170 | 2300-2700 | |
Insertion Loss(dB) | ≤0.3dB | |
Isolation(dB) | ≥50dB | |
VSWR | ≤1.22 | |
Intermodulation (dBc) | ≤-155dBc (3rd order; with 2×20W) | |
Impedance (Ω) | 50 Ω | |
DC /AISG | By-pass(max .3000 mA) | |
Lighting Protection | 10KA ；10/350us pulse | |
Power Rating | 300 W | |
Environmental | ||
Operation temperature | -25°C to +65°C | |
Storage temperature range | -40°C to +85 °C | |
Relative humidity | 5% - 95% | |
Application | Outdoor (IP67) | |
Mechanical | ||
Connector | 4.3-10 Female | |
Weight (Single ) | ≤3.6kg | |
Color | Grey | |
Dimension(mm) | Double unit：140.1*156.6*106.5 mm | |

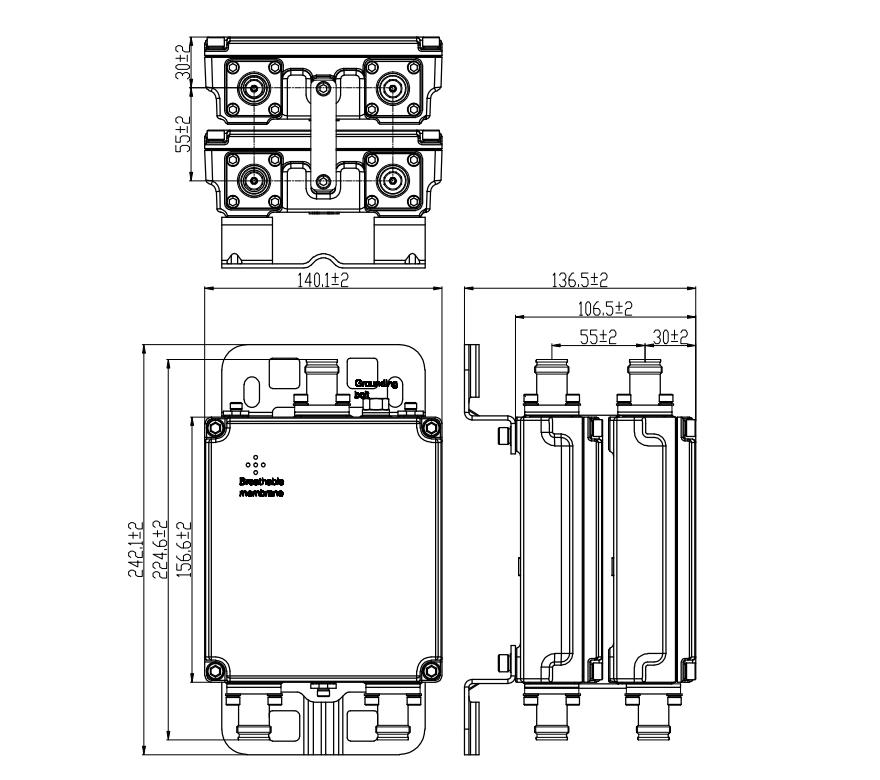

Outline drawing :
