l Wide frequency range for 2G/3G /4G/5G/LTE applications
l Low Passive Inter-modulation -155dBc
l Low VSWR & Insertion Loss
l High Isolation, Indoor & Outdoor, IP66
l Widely used for In-building Solutions
Specifications :
Model No. | HT-TRI-1726-43-DS | ||
Electrical | |||
Frequency range (MHz) | Port1 | Port2 | Port3 |
1710-1880 | 1920-2170 | 2300-2700 | |
Insertion Loss(dB) | ≤0.35 | ||
Port Isolation(dB) | ≥50 | ||
VSWR | ≤-19dB/1.25 | ||
Intermodulation (dBc) | ≤-155dBc (with 2×43dBm) | ||
Impedance (Ω) | 50 Ω | ||
Input power (W) | 300 | ||
DC/AISG | By-pass(max. 3000mA) | ||
Lightning protection | 10KA；10/350us pulse | ||
Environmental | |||
Operation temperature | -20 °C to +65 °C | ||
Storage temperature | -40 °C to +85 °C | ||
Relative humidity | 5% - 95% | ||
Application | Indoor or outdoor (IP66) | ||
Mechanical | |||
Weight(kg) | 5kg | ||
Connector | 4310-Female | ||
Dimension(mm) | Single : 169 x146 x 48.5mm Double : 169 x146 x 102.5mm | ||

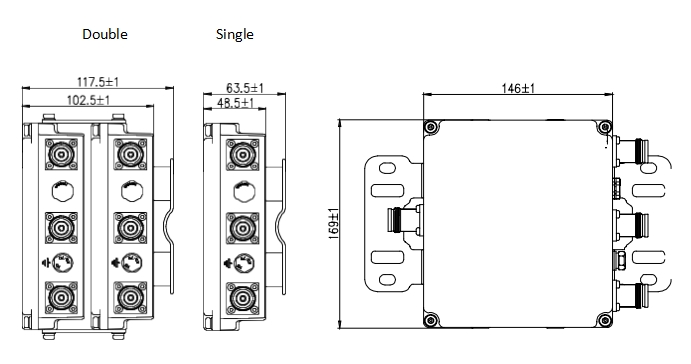

Outline drawing :

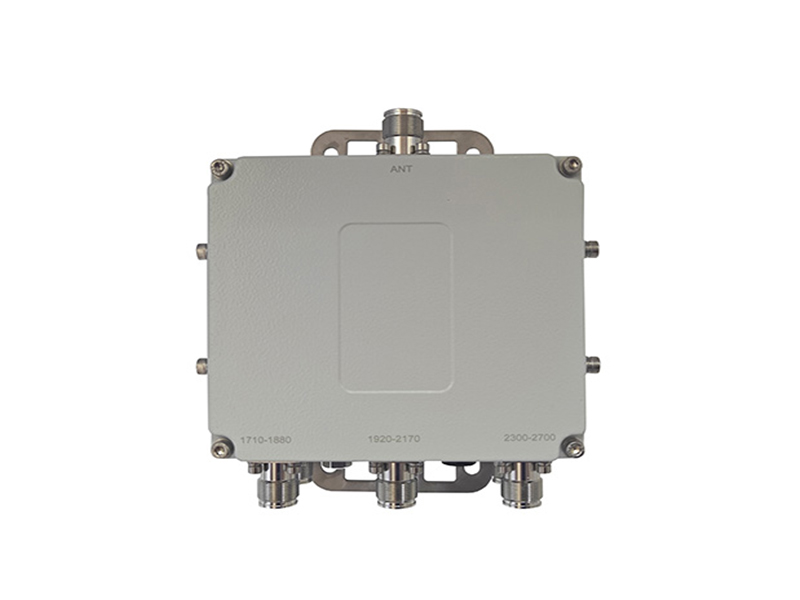

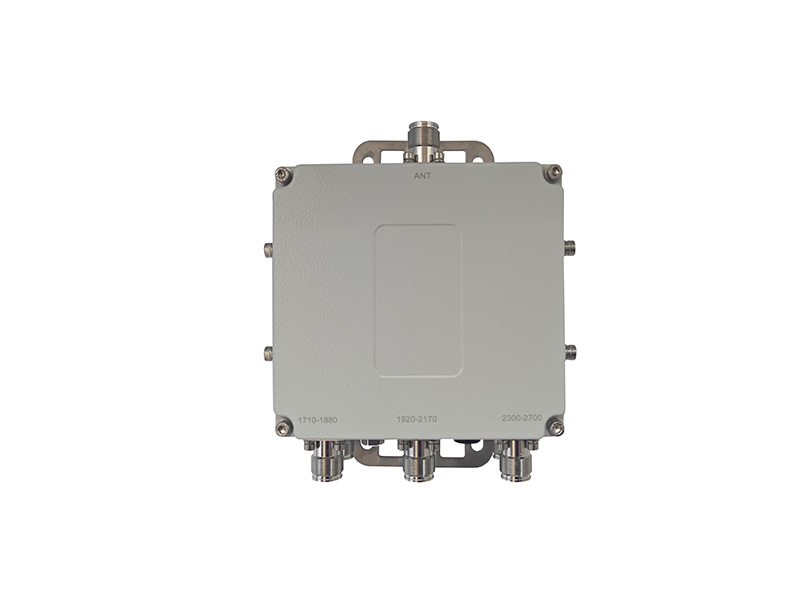

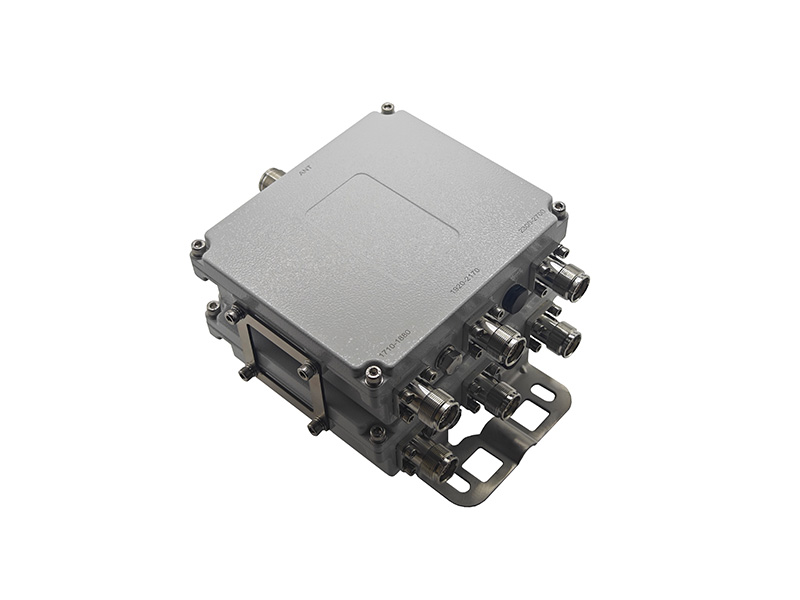

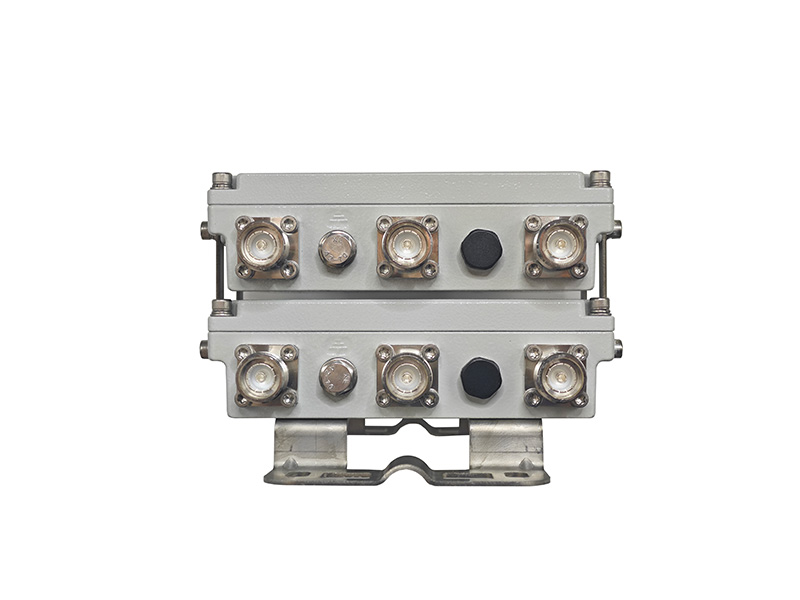

Product Image:
