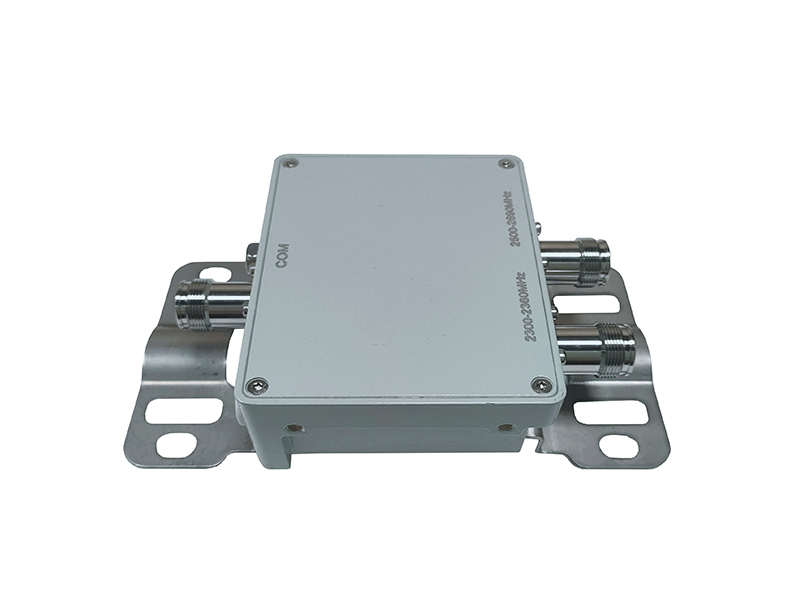

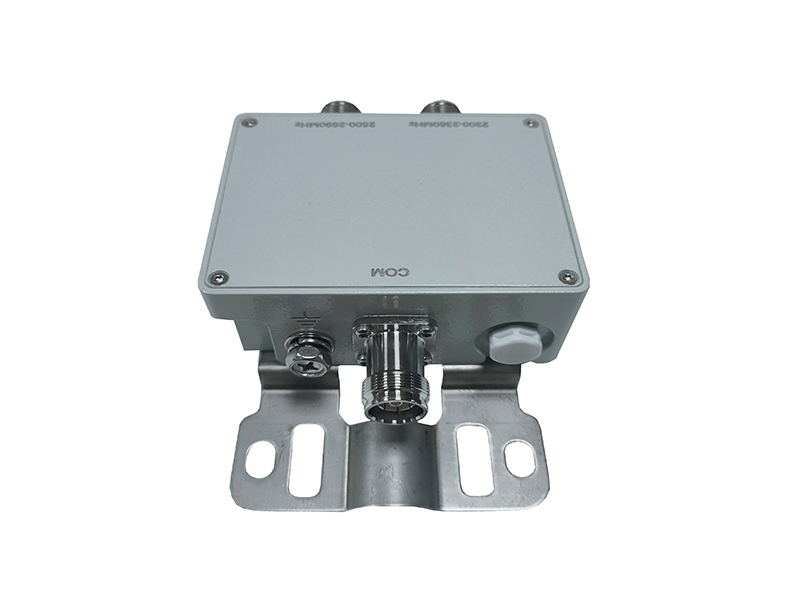

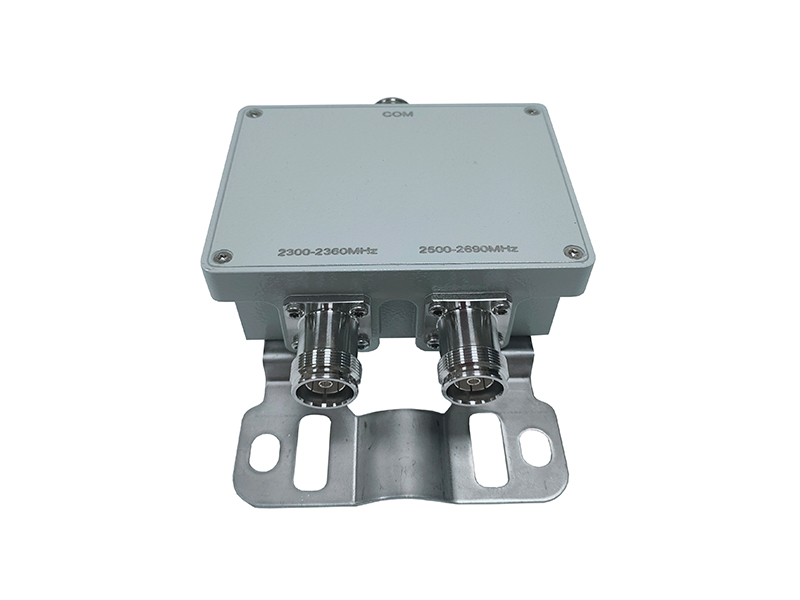

2300-2360&2500-2690MHz Diplexer
Specifications :
Part No. | HT-DIP-2326-4310 | |
Port | Port1 | Port2 |
Frequency range | 2300-2360MHz | 2500-2690MHz |
Insertion loss | ≤0.35dB，0.2dB typical | |
Return loss | ≥18dB，20dB typical | |
Intermodulation | ≤-160dBc（with 2×20W） | |
Isolation | ≥40dB，50dB typical | |
Impedance | 50Ω | |
Input power | 200W max.(input ports)，500W max.(Common port) | |
DC/AISG | By-pass(max.3000mA) | |
Lightning protection | 10KA; 10/350μs pulse | |
Operation temperature | -20°C to +65°C | |
Storage temperature | -40°C to +85°C | |
Relativehumidity | 5%-95% | |
Application | Indoor or outdoor (IP67) | |
Color | 409C Grey | |
Dimensions | Single：112*87*45mm | Double：112*87*99mm |
RF Connectors | 4.3-10 Female | |
HT Part code | 9508024050 | |

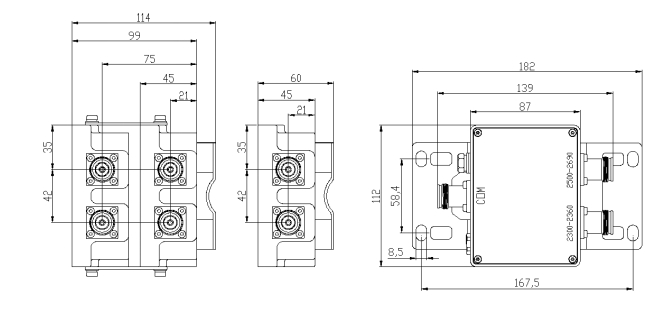

Outline Drawing :
