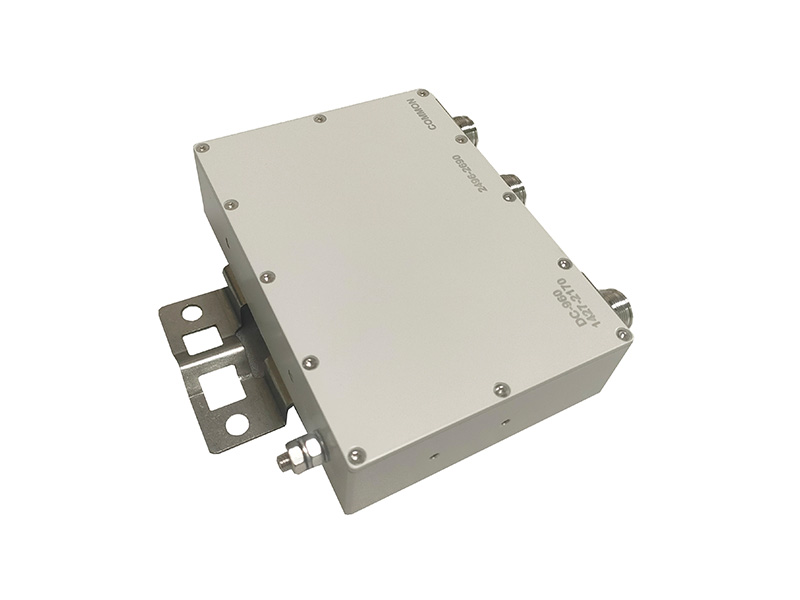

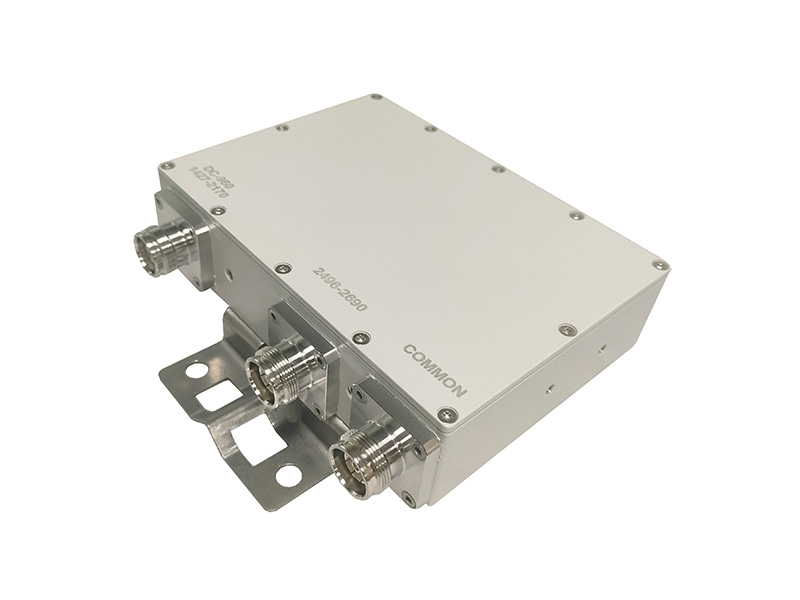

Two port tri band combiner

Frequency range

Port 1,4 Port 2,5

DC – 960 / 1427 – 2170 MHz

2496 – 2690 MHz

Insertion loss

Port 1,2 ⇨ Port 3 Port 4,5 ⇨ Port 6

≤ 0.3 dB

Isolation

Port 1 ↔ Port 2 Port 4 ↔ Port 5

≥ 50 dB

VSWR

≤ 1.25

DC-by-pass

Port 1 ↔ Port 3

Port 4 ↔ Port 6

(max. 1A per input max. 60V DC (AISG Standard, 2.0, § 6.4))

IM- value

3rd order @ 2 x 20 W

-160 dBc max. @700-2690MHz

Impedance

50 Ohm

Surge Protection

N/A

Power Rating

Port 1,4 Port 2,5

600 W (CW) max.

100 W (CW) max.

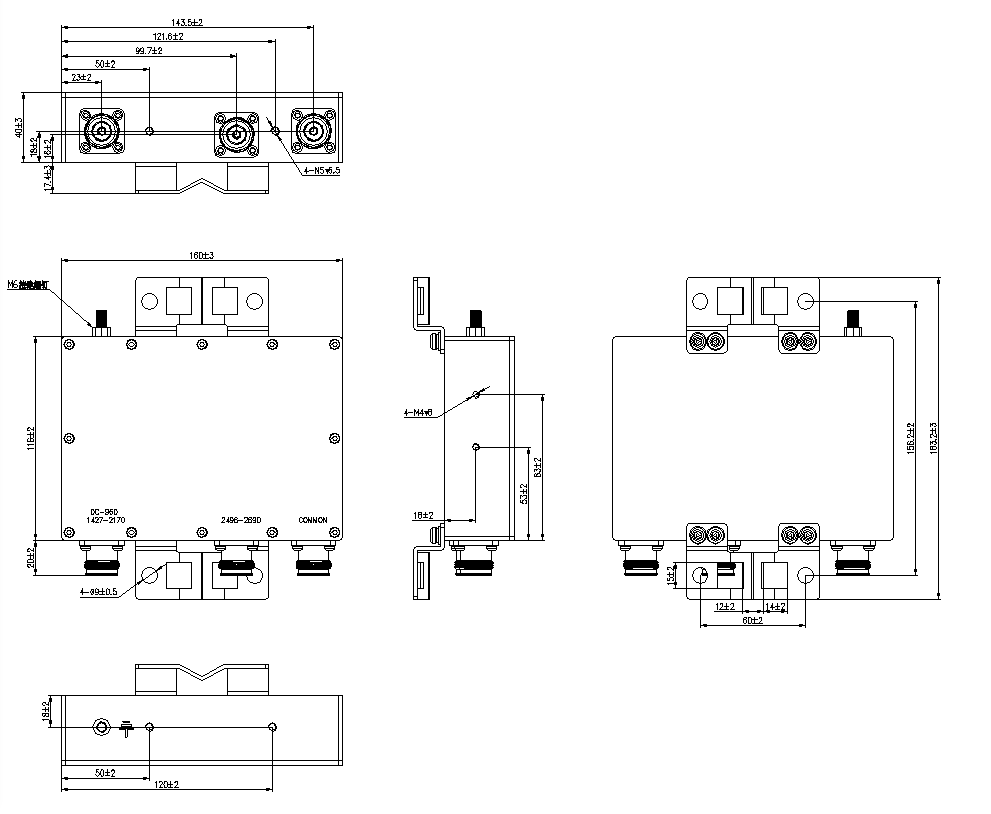

Dimensions, approx.

(Excluding brackets and connectors)

160 x 40 x 116 mm

Weight, approx.

2.5 kg

Color

Gray

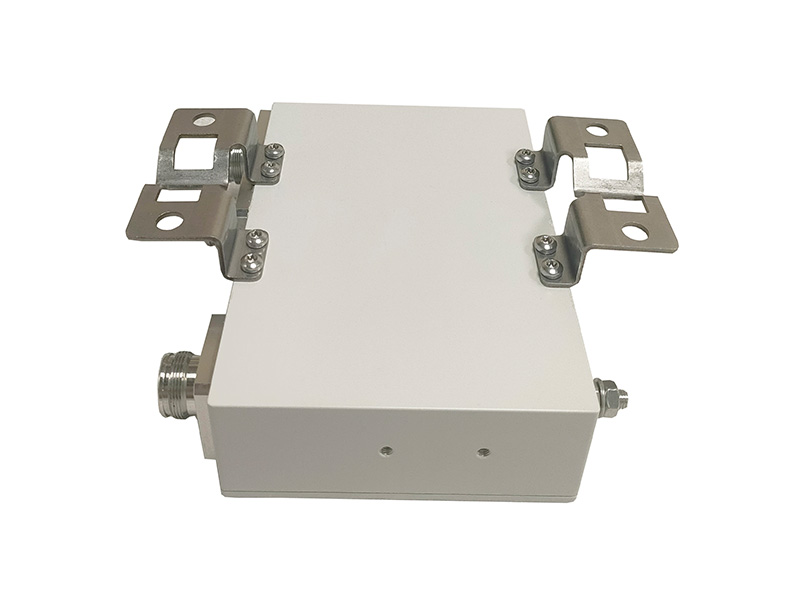

Wall / Mast mounting (optional)

Part of delivery

ETSI EN 300019-1-2 Class 2.3

ETSI EN 300019-1-4 Class 4.1E

Application:

Outdoor use (IP67)

Operation Ambient temperature range

-40 °C to +55 °C

Storage Ambient temperature range

-40 °C to +85 °C

Relative humidity, max.

95% (non-condensing)
