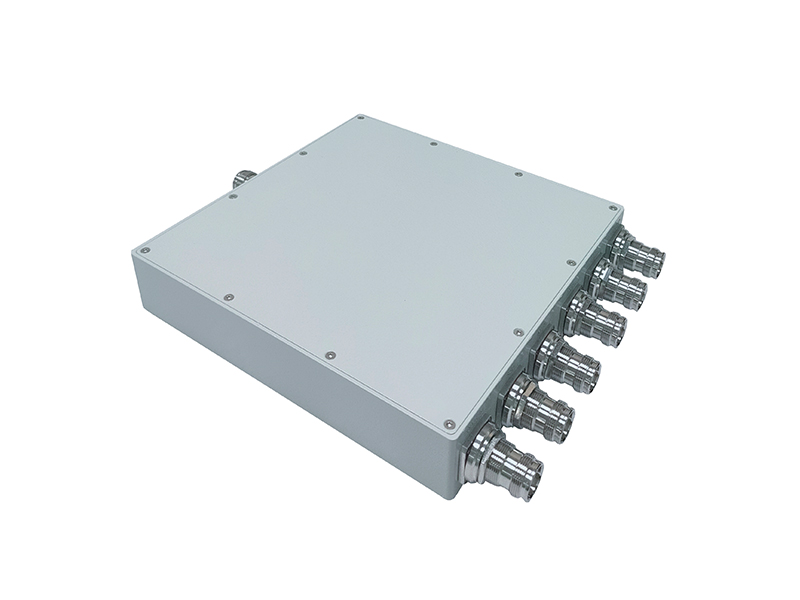

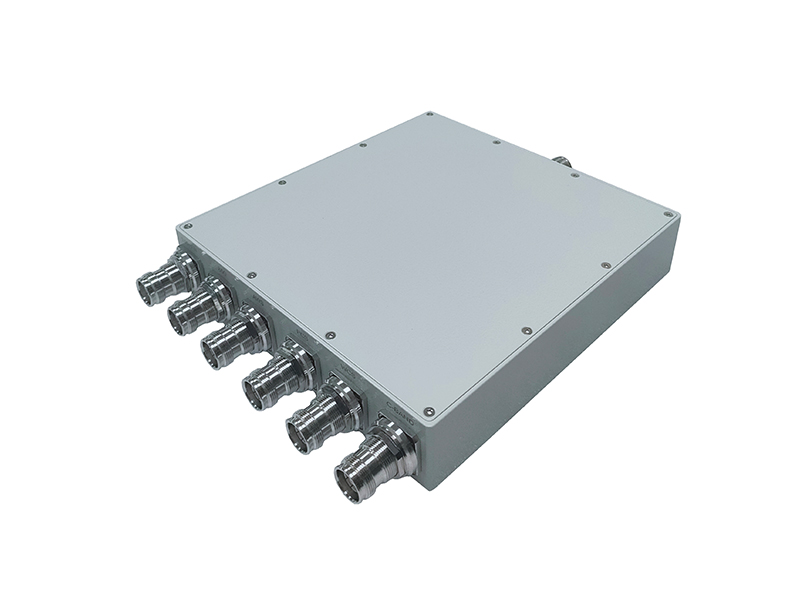

698-4200 MHz 6-Way Combiner
Specifications :
Part No. | 9508070350 | |||||
Port | Port1 | Port2 | Port2 | Port4 | Port5 | Port6 |
Frequency range | 698-798MHz | 815-896MHz | 1850-2000MHz | 1695-1780&2110-2200MHz | 2300-2690MHz | 3300-4200MHz |
Insertion loss | ≤0.5dB | |||||
Isolation | ≥38dB | |||||
Return loss/VSWR | ≤-18dB/1.3 | |||||
Intermodulation | ≤-161dBc (with 2×43dBm) | |||||
Impedance | 50Ω | |||||
Input power | ≤100W | |||||
Operation temperature | -20°C to +65°C | |||||
Storage temperature | -40°C to +85°C | |||||
Relative humidity | 5% - 95% | |||||
Waterproofing grade | Indoor | |||||
Weight | TBD | |||||
Color | 409C Grey | |||||
Dimensions | 220*228*43mm（without connector） | |||||
RF Connectors | 4.3-10 Female | |||||
Outline Drawing :
